DIN 7983 Specifications

  • Home
  • DIN 7983 Specifications

ISO 7983 Specifications

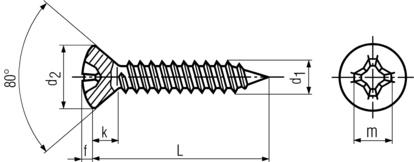

Fasteners, Best Quality Fasteners
All measurements in millimeters (mm)
d1 d2 max. k approx. f approx. m approx. Cross Recess No.
2.2 4.3 1.3 0.7 2.8 H1
2.9 5.5 1.7 0.9 3.4 H1
3.5 6.8 2.1 1.2 4.6 H2
3.9 7.5 2.3 1.3 4.7 H2
4.2 8.1 2.5 1.4 4.9 H2
4.8 9.5 3 1.5 5.4 H2
5.5 10.8 3.4 1.7 7 H3
6.3 12.4 3.8 2 - H3
8 15.8 4.65 - - -
