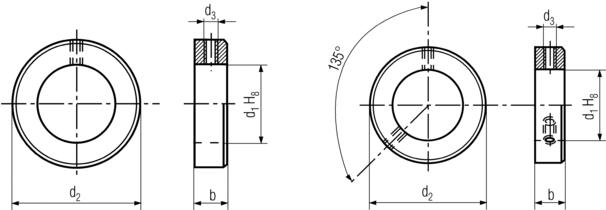

DIN 705 Specifications

Fasteners, Best Quality Fasteners
All measurements in millimeters (mm)
d1 b d2 d3 slotted set screw
6 8 12 M4 M4 x 5
8 8 16 M4 M4 x 6
10 10 20 M5 M5 x 8
12 12 22 M6 M6 x 8
14 12 25 M6 M6 x 8
15 12 25 M6 M6 x 8
16 12 28 M6 M6 x 8
18 14 32 M6 M6 x 8
20 14 32 M6 M6 x 8
22 14 36 M6 M6 x 10
24 16 40 M8 M8 x 12
25 16 40 M8 M8 x 10
28 16 45 M8 M8 x 12
30 16 45 M8 M8 x 10
32 16 50 M8 M8 x 12
34 16 50 M8 M8 x 12
35 16 56 M8 M8 x 12
36 16 56 M8 M8 x 12
38 16 56 M8 M8 x 12
40 18 63 M10 M10 x 16
45 18 70 M10 M10 x 16
50 18 80 M10 M10 x 16
