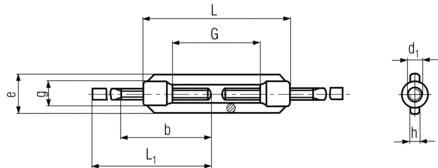

DIN 1480 Specifications
Home
DIN 1480 Specifications
ISO 1480
Specifications
Open with 2 eyes
All measurements in millimeters (mm)
d1
L
G
e
g
h min.
b1
c
L3
M6
110
86
19
12
6
50
10
85
M8
110
80
23
15
8
55
10
90
M10
125
89
30
18
9
65
14
110
M12
125
83
34
21
11
65
18
115
M14
140
90
36
25
13
80
18
125
M16
170
116
42
27
14
85
22
160
M20
200
132
52
34
17
115
25
185
M24
255
177
60
39
20
130
28
210
M30
255
165
74
46
23
150
38
240
